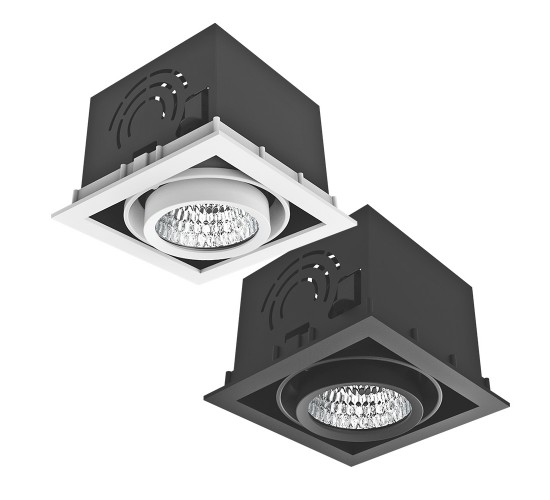

Grazia I

Grazia I

Grazia I

Click for price What's this?

In stock

Construction: Al. Die­Cast heatsink and body, M. S. CRCA Back body, Passive cooling design for heat dissipation
LED: Bridgelux, Citizen, Lumiled, Cree
Reflector: High Reflector Aluminium / PC Reflector
Reflector Color: ­ Silver / Golden
Beam Angle: ­ 15° / 25° / 40° / 60°
Tilt/Rotation: 30° Twin Gimble
Mounting: Recessed Mount
Colors Available: White, Black, Grey
Wattages Available: 14W, 19W, 23W, 27W, 31W, 35W
+ -

Technical Specifications

Technical Specifications

Mechanical
Housing MaterialDie Cast Aluminium + M.S.
FinishPowder coating
Housing ColourWhite/Grey/Black
ReflectorAluminium / PC
FinishSilver / Glossy/Golden
Dimension (L x W x H or Dia X H)145 W x 100Ht
Cut Out Dimension130 x 130mm
MountingRecess Mount
Ingress ProtectionIP20
Electrical
Input Voltage 230V
Wattage14w to 35 W(+/-10%)
PF0.95
THD(i)<10% & <20%
Frequency50~60 Hz
I Volt Range140-300V
Driver TypeIsolated
Surge Protection2.5/4.0KV
Driver makeArgo, Philips, Osram, Fulham
Optical
LED MakeBridgelux, Citizen, Lumiled, Cree/Osram
LED Lumen160 lm / watt
LED Life50,000 hrs
Luminous Flux2240 to 5600 lm
CCT2700k - 6500k
CRI>80 >90 >95
Beam Angle10? / 15?/ 25? / 40? / 60?/90?
Tilt Angle30? Twin Gimble
Operating Temp.-20?C ~ +40?C

Product Diagrams
