| Housing Material | Die Cast Aluminium |
| Finish | Powder coating |
| Housing Colour | White/Grey/Black |
| Reflector | Aluminium / PC |
| Finish | Silver / Glossy/Golden |

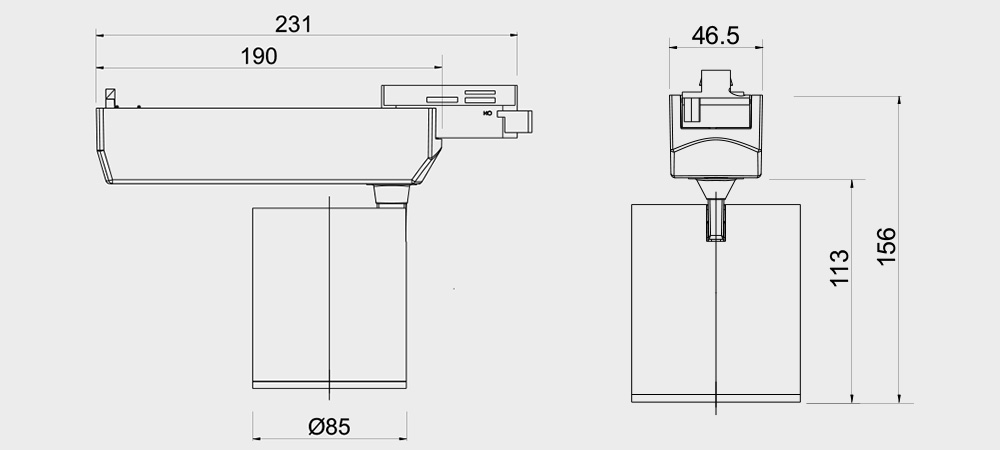

| Dimension (L x W x H or Dia X H) | 85 ? - 190 W x 156Ht |
| Cut Out Dimension | NA |
| Mounting | Track Mount |
| Ingress Protection | IP20 |
| Input Voltage | 230V |
| Wattage | 14w to 35 W(+/-10%) |
| PF | 0.95 |
| THD(i) | <10% & <20% |
| Frequency | 50~60 Hz |
| I Volt Range | 140-300V |
| Driver Type | Isolated |
| Surge Protection | 2.5/4.0KV |
| Driver make | Argo, Philips, Osram, Fulham |
| LED Make | Bridgelux, Citizen, Lumiled, Cree/Osram |
| LED Lumen | 160 lm / watt |
| LED Life | 50,000 hrs |
| Luminous Flux | 2240 to 5600 lm |
| CCT | 2700k - 6500k |
| CRI | >80 >90 >95 |
| Beam Angle | 10? / 15?/ 25? / 40? / 60?/90? |
| Tilt Angle | 240?x357? |
| Operating Temp. | -20?C ~ +40?C |
